PHD-HMM-48-1

48 Ω HMM Pulse Force Probe

Features

  • High current wafer-level and package-level 98 Ω HMM probing with grounded DUT
  • Built-in high surge 48 Ω pulse reflection suppression resistor up to 80 A peak
  • Fast rise time < 0.5 ns due to low inductance GND loop
  • Variable pitch from 50 µm to 5 mm
  • Tungsten replacement probe tips
  • SMA pulse force pigtail
  • Compatible to PHD-3001A interface
  • High reliability

Download: Product Datasheet PHD-HMM-48-1

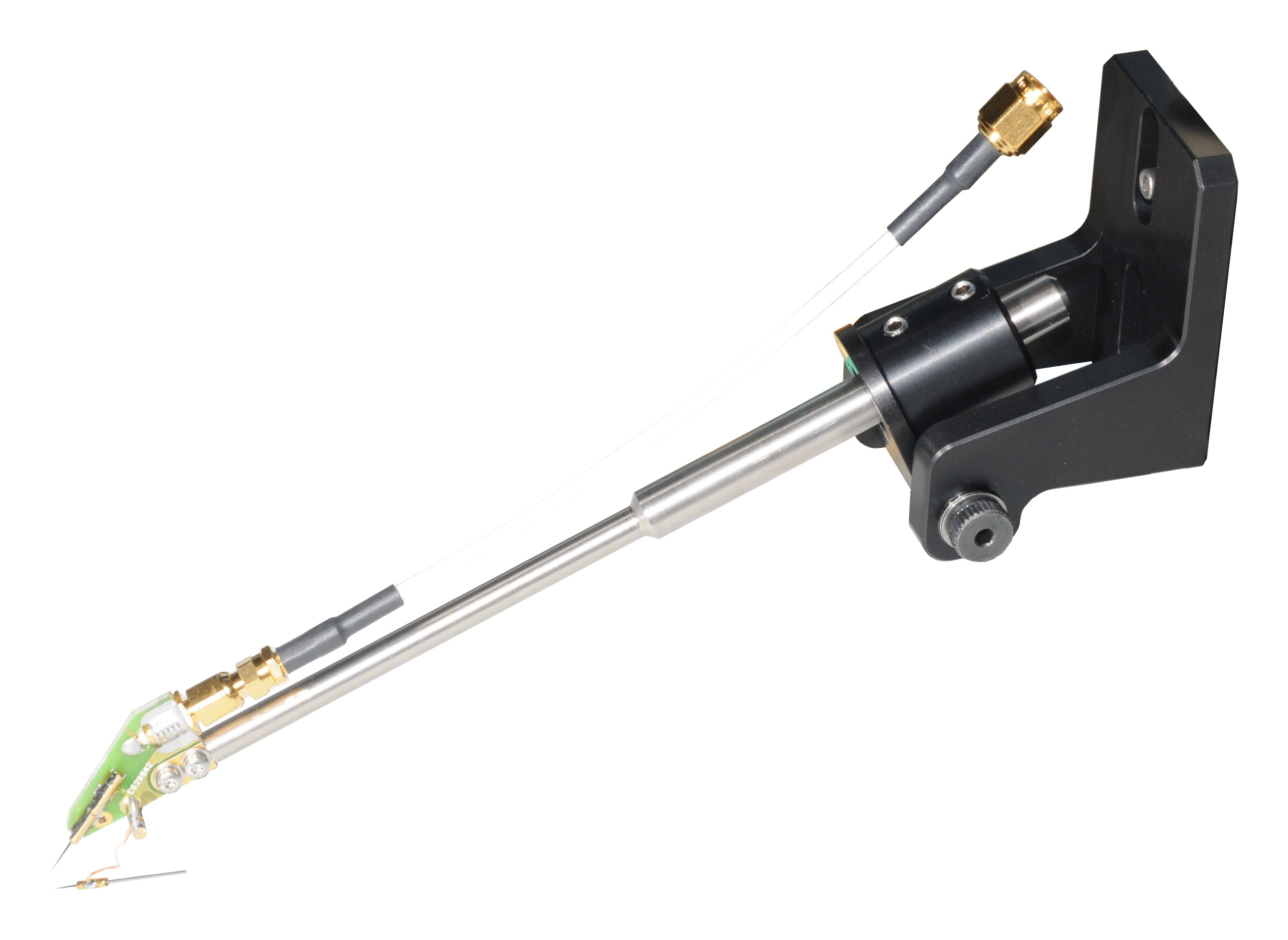

Probe Arm Holder:

DSC_5259s1

Probe Arm Head and Probe Tip:

DSC_5262s1

Packing for Shipment:

DSC_5270s1
