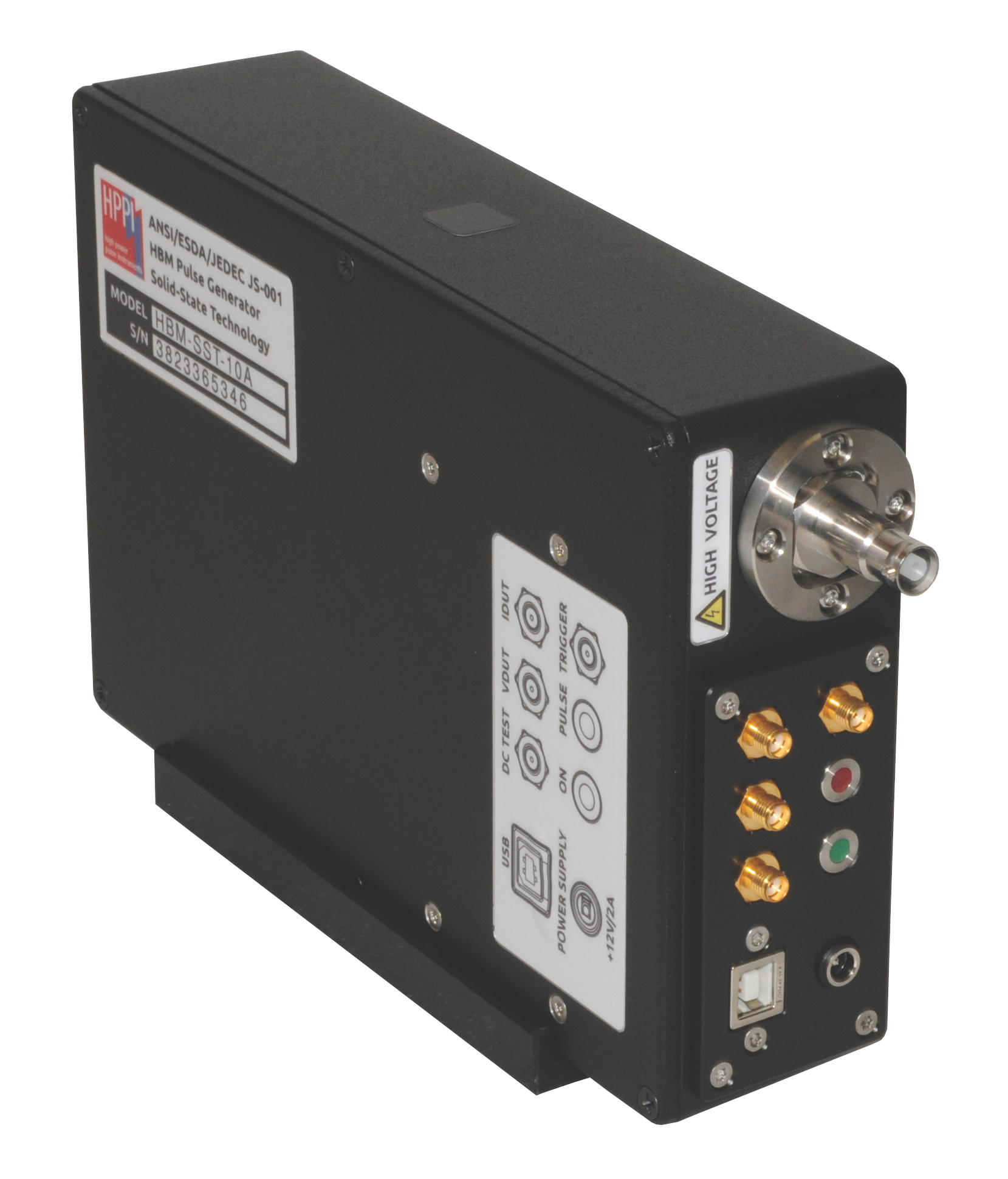

HBM-SST-10A

±6 kV Solid-State 2-Pin HBM Pulse Generator

Features

  • Solid-State ±30 V to ±6 kV Human-Body-Model (HBM) 2-pin tester according ANSI/ESDA/JEDEC JS-001 standard with C=100 pF, R=1.5 kΩ discharge network
  • Optionally available upgrade for all HPPI TLP-3010C, 4010C, 8010A/C and 12010A/C hardware systems and software (upgrade on request)
  • True HBM – the classical discharge network of the HBM-SST-10A according the normative standard ensures compliant waveforms for all load conditions
  • Integrated charge removal resistor
  • Integrated DUT voltage and DUT current sensor for real time voltage and current monitoring
  • Integrated DC test DUT switch
  • Integrated hardware 50 Ω trigger output for high speed digital oscilloscopes
  • Integrated overvoltage protection of voltage sense, current sense and DC test interfaces for oscilloscope and SMU protection during high voltage HBM testing
  • Fast and efficient HBM measurements including transient waveform data management using the standard HPPI tester software

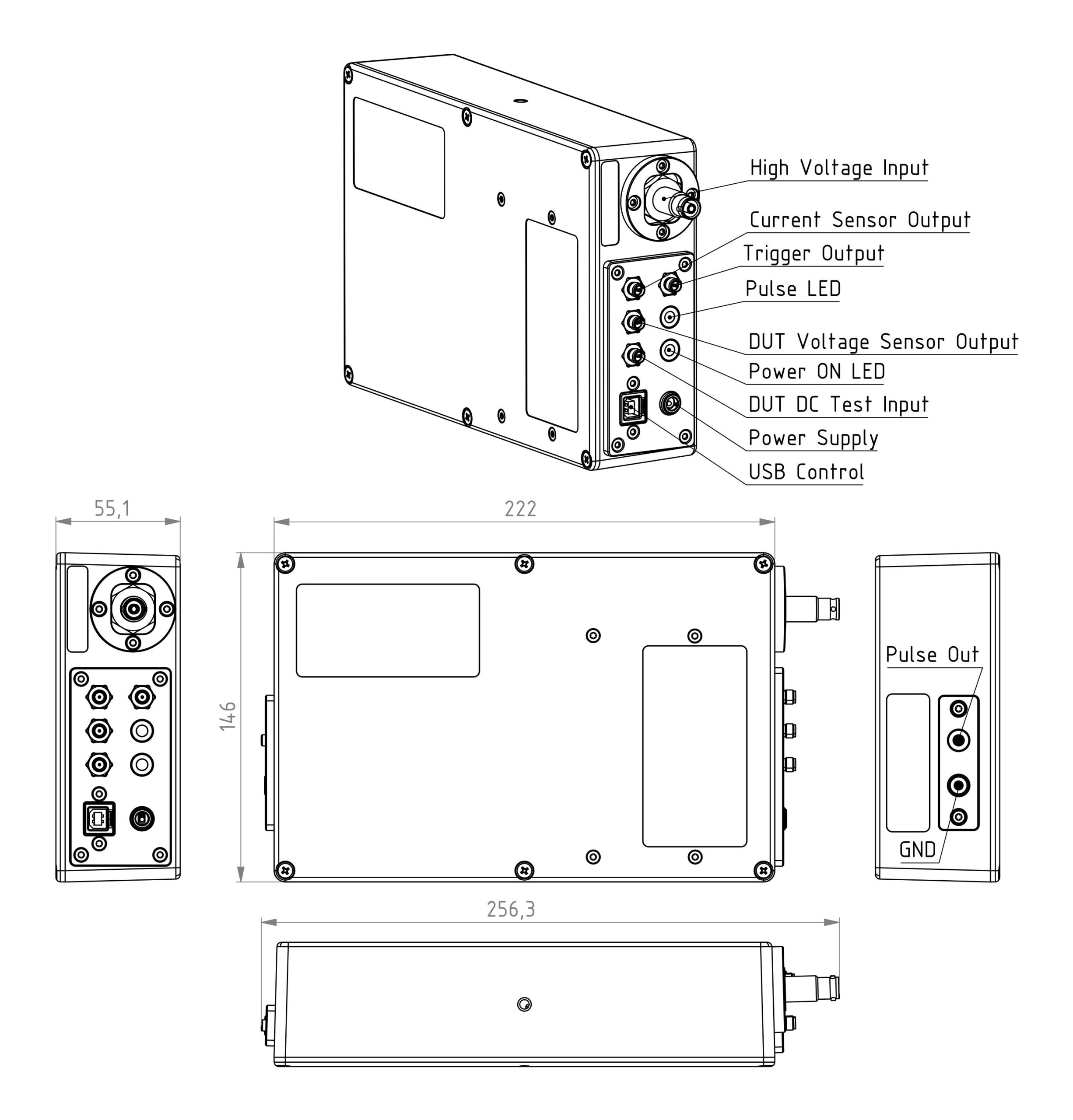

  • Size 275 mm x 175 mm x 67 mm

Download: Product Datasheet HBM-SST-10A
